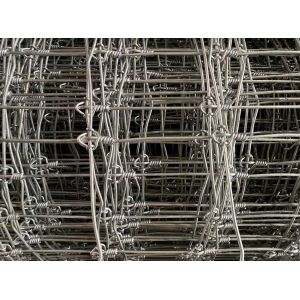

The performance of this kind of fixed knot fence is better than that of hinge joint fence.Because it is not easy to move the knot at the wire crossing.It is widely used in grassland, farm, animal husbandry and breeding.
It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life and low prices. Product neat and beautiful, diverse specifications.
| Full Automatic Fixed Knot Fence Machine | |
| Maximum Fence Width | 10 feet (3048mm) |
| Maximum number of Line Wires | 21 |
| Line Wire Spacing | 1+4*3"+5*4"+2*5"+9*6", Be increased in multiple of 25.4mm (1") |
| Stay Wire Spacing | 75mm,150mm,225mm,300mm, can adjusted by 75mm |
| Edge Wire Size | ∮2.0mm-3.0mm |
| Line Wire Size | ∮2.0mm-2.50mm |
| Stay Wire Size | ∮2.0mm-2.50mm |
| Knot Wire Size | ∮2.0mm-2.24mm |
| Line Wire Tensile Range | 850-1350N/mm2 |
| Stay Wire Tensile Range | 525-1200N/mm2 |
| Knot Wire Tensile Range | 400-550N/mm2 |
| No. Strokes (Stay Wires) /Minute | 20-25row/min |
| Total Machine weight | 7.2TON. |
| Approximate Floor Area Required | 11mx22m |
| Wire Bobbin | 41Units |
| Air pump | 1Unit |
| Machine color | Customized |
